How to Scan NZ Free-to-Air Satellite Channels on ENGLAON Google TVUpdated 6 days ago
This guide applies to ENGLAON X90 Google TV using Freeview Satellite through a satellite dish in New Zealand.
Freeview’s satellite TV service in New Zealand moved to KoreaSat 6 on 15 April 2025. KoreaSat 6 is still located at 160.0E, replacing the older Optus D2 satellite.
This article is based on the ENGLAON X90 Google TV menu. If your TV is a different model, the menu layout may look slightly different, but the working principle is the same.
If you are trying to scan New Zealand Free-to-Air Terrestrial TV, please READ THIS.
Important Before You Start
please check:
| Check Item | What to Confirm |
|---|---|
| Signal type | You are using Freeview Satellite / DVB-S / DVB-S2 |

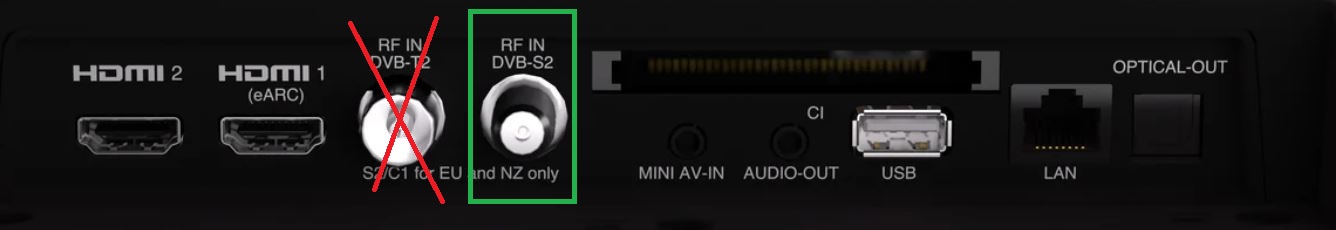

| Cable connection | The satellite dish cable is connected to the TV’s SAT input |
Recommended NZ Freeview Satellite Settings
| Setting | Recommended Value |
| Satellite | Ku_Optus D1 160.0E |
| LNB Frequency | Try 11300 first, then 10750 if there is no signal |
| LNB Power | On / Auto |
| 22KHz | Off / Auto |
| Toneburst | Off / None |
| DiSEqC 1.0 | Off / None |
| DiSEqC 1.1 | Off / None |
Although NZ Freeview Satellite now uses KoreaSat 6, it is still located at 160.0E. If your ENGLAON TV menu shows Ku_Optus D1 160.0E, Optus D1 160.0E, Optus D2 160.0E, or another 160.0E Ku Band option, it can still be used for scanning.
The satellite name is mainly a preset label. The most important settings are the 160.0E position, Ku-band, correct LNB frequency, and correct transponder settings.
Step-by-Step Instructions
From the Google TV home screen:
- Press the Settings button on your remote and select All Settings.
- Go to Channels & Inputs.
- Select Channels.
- Select Country / Region and choose New Zealand.
- Under Tuner Mode, select Satellite.
- Do not select Antenna or Cable.
- Select Satellite Auto Scan.
- When the Freeview setup screen appears, select Freeview.
- Select the correct or closest New Zealand region.
- When the TV asks “Do you want to start Freeview scan?”, select Yes.
- Wait for the scan to finish.
- Save the channels if prompted.
Your TV will now scan for available New Zealand Freeview Satellite channels.
